Rabu, 31 Agustus 2016

Leaf Blowers and Entropy

The other day, the gardeners were in our neighbors back yard and blowing away at the leaves.  As they usually do, they try to corral the leaves in one corner of the yard where they can then scoop them up and haul them off somewhere.  Unfortunately, when they blow them up against the fence that separates them from our yard, a good deal of the leaves and other debris ends up in our yard.  So yes, I am one of those people that thinks that leaf blowers are a bad idea.
But that is not my main point here.  My point is to talk about a definition of entropy that sees it as a degree of disorder.  In this view, entropy is created when the world becomes more disordered.  The gardener with the leaf blower lowers the entropy in his clients back yard but increases the overall entropy of the neighborhood by expending energy to create more order in a specific place at the cost of the larger environment.
This is how living organisms operate as well.  They hold entropy at bay internally by increasing overall entropy in their environment.  And it is only by holding entropy at bay by sucking energy out of their environment that living organisms can stay alive.
Still, it would be good if gardeners could work out a better way to remove leaves than by leafblowing and still put food on their table.
Read More..

Minggu, 28 Agustus 2016

The Adirondack Guide Boat too much technology

Plans of the Adirondack guide boat from the Mystic Seaport Museum which sells them for $75.

Lines of the Adirondack Guide Boat from the Mystic Seaport Museum
Description of the Adirondack Guide Boat  from the Mystic Seaport Museum site:

Guideboats are bottom-board boats with natural knees used as frames: the dory-building technique taken to the extreme. Builders developed a smooth-skin lap strake construction method now known as the guideboat lap. The small boats-like the 13 Parsons boat at 57 pounds and the 13 6" Blanchard boat at 53 pounds-were best suited to be carried in to fish small ponds, for which they were called "raiders." The 16 guideboats are considered the best compromise between speed and carrying capacity, work­ing well solo or carrying a guide and sport with their load of camping gear. The 16 GHOST weighs just 64 pounds, while the 15 7" Cole boat weighs 59.   The plans drawn by Dave Dillion do not require lofting; full dimensions are provided for each frame. Hallie Bonds Boats and Boating in the Adirondacks provides more historical information.  Today, guideboats are successfully built as frameless strip-planked boats and as semi-strip-planked boats with glued joints over laminated frames.  From 87 Boat Designs by Ben Fuller.  Boat is owned by the Adirondack Museum(64.170.1), Blue Mountain Lake, New York.  Plans drawn in 1984.

So the other day, a friend of mine called me to see if I wanted to see his new/old guideboat that he had bought on craigslist for about $1k.  The boat was an original built about 100 years ago.  The boat was still mostly intact.  There was one hole in it that had been patched and most of the planking was still sound except for a few places where the planks had opened up.
Ribs/frames were in two halves with their bottoms overlapping and nailed together as well as screwed to the floor plank.  Each rib was sawn from natural crooks, that is wood whose grain roughly followed the curve of the rib. A number of ribs near the center of the boat had the same shape. Toward the ends of the boat, the ribs gradually became narrower. Builders appear not to have had lines for these boats. Instead, each builder had templates for their ribs. None of those seem to have survived. The lines shown in the drawings above were taken off boats that have made it into museums.
The planking edges were beveled and lapped with the laps clinch nailed to each other.
As I understand the process, the ribs were first attached to the bottom plank and then the planks were screwed to the ribs.
The guide boats had a relatively short life span. Apparently, they were designed specifically for the guide trade in which the guide needed a boat big enough for two people but light enough to carry between lakes lacking road access.  As soon as roads were built to the lakes and resorts built on their shores, the need for the guides went away and with them their boats.
Finally, I would like to share some unease I had with this boat when I was first exposed to it.  My unease stemmed from the fact that this boat required an industrial economy to build.  Not only did you need a professional boat builder with a band saw but you also needed thin planks and lots of small screws and nails, none of which you could readily scrounge from your immediate environment. The guide boat clearly did not meet the post-apocalyptic stamp of approval, that is, it would be impractical or even impossible in a world that lacked a sophisticated industrial economy to supply all its component parts and tools to manufacture them.
Read More..

Jumat, 26 Agustus 2016

More Control

Remember when I fitted a new CH boiler and heat exchanger??  No? Here is the blog

The whole system worked really well in fact the heat exchanger worked so well it set up a thermo siphon with the engine water jacket.  The Hurricane was so powerful it eventually produced enough heat to get the 450kg engine block up to 40c in an un-insulated engine room.  Clearly this is not ideal unless the engine needed preheating in arctic conditions which is unlikely at 52N degrees.

The answer was to fit some additional control. (Yes more control systems!) will it ever end?  I decided a motorised ball valve would fit the bill.  I was unable to find a 3/4" valve that had a sprung return so opted for a relay controlled power to open power to close.

Valve with relay above

This is the circuit diagram.


The relay is energised when the ignition is powered up and killed when it switches off. Once the valve motor has reached its travel no power is drawn.

The other relay (top behind) in the system is also powered from the ignition to interrupt the live feed from the heat sensitive switch to the CH pump.  Once the engine reaches 50c the pump to the CH switches on and through the heat exchanger heats the radiators inside the boat. This extra relay is there to interupt the live feed to the pump so it switches off when the engine stops.  This stops the pump running on until it drops below 50c at the sensor which results in the engine not re-absorbing heat from the rads and calorifier.  Before this additional relay was in, the pump would run on pointlessly for up to a totally counterproductive hour until the heat switch cut out.

Hopefully thats it for the CH system.



Read More..

Kamis, 25 Agustus 2016

Clever Internet Google Streets

A few days ago it was mentioned that how would my boat look on the water.  Well as mine is a bit away from that yet, I thought Id google the last location of the sister boat that I knew of.

Sure enough it was there.


The main difference with this boat is its 70 not 60 like mine.  He also has skylights and a side hatch.  Otherwise its pretty much the same in the shell and the propulsion.
Read More..

From Classic Boats to Exquisite Birds



Katz restored Cobra

Bird enjoying the Lake Dora Show
Show season is seriously underway. Two days to Tavares, Florida, three days of show and two days home. When we get home, it turns out, we really werent gone for very long. But, the whirlwind of travel, of seeing faces that we know well, but only from this distant show, of seeing faces that we know from almost everywhere that we travel to, of meeting new faces and of spending time with friends and family who are in this distant place, make it seem like weve been away for ages.

Flying Saucer FiberClassic

Its been about eighteen years since we started this annual journey to Lake Dora where the Sunnyland Chapter of The Antique & Classic Boat Society hold one of the great shows among antique and classic boat shows. Its a given that we will be there next year; “first space to the right of the entrance”.

First booth to the right of the entrance


The Chesapeake Bay Bridge Tunnel is 20 Miles Long!


The drive is as intense as the show, considering that we spend more time in the car than we do in our booth. Route 95, although perhaps a bit faster, doesnt interest us as much as taking those roads that have mom & pop motels, local eateries, farms, houses, and reveal local cultures and industries.




Incredible O.J. Citra, Florida

You cant really see anything from Route 95 and with a good map, and especially with GPS, its hard to get lost anymore. For the most part, these are also 60 mph roads and I dont think that they cost us anything in terms of time.


?
The Real Callabash, N.C.




Just as we see familiar faces at the show, there are familiar landmarks along the roads; architecturally interesting old houses and buildings, towns that still hold their character, and because we are on the cusp of Spring, places where the season is much further along or farther behind.



Tara, once upon a time???





As Ive said before, this is where we find the great Barbecue and Seafood restaurants that we like so much.





Santee, S.C. at sunset


Swan Pair by Ed Kuhn
This year, we may as well not have gotten out of the car. We arrived home late on Tuesday night. Friday morning (tomorrow) we leave for Chincoteague, Virginia. Its the Easter show down there, with a totally different set of familiar faces. Weve known them for a lot of years, as well. The ratio of drive time to show time is a bit different. Two hours of driving (each way) and two days of show: Friday and Saturday.




The Chincoteague Easter Show is not about boats; its about birds (although there are a few of us that make model boats too). Some of the best carvers in the country come to this show. There are also other types of artists who are truly outstanding in what they do. Were looking forward to spending time with Mary Lou Troutman, Ed Kuhn, Bill Veasey, Shannon Dimmig, Don and Donna Drew, Grover Cantwell, Russ Fish, Bill Hickson, Rocky Detwiler, Donnie Thornton,Bill Cowen, Denise Bennett, Joan Devaney, Nancy Richards West and many, many more great people. I definitely recommend this show and you have to know that its pretty special for us to look forward to it after the intense trip to Florida. Here is the show website: http://www.chincoteaguedecoyshow.com/

At the 2012 Easter Show
Actually, the Chincoteague Easter show is about the arts and like an ACBS show is centered around boats, so is this show centered around birds. Its really worth the trip from wherever you are. It will be good to have a couple of weeks without travel before our next show: The Bay Bridge Boat Show. That will be another story... At least this year, we dont have to drive to New York on Easter Sunday to put a large half-hull on the wall like we did last year.



See you at the Show!


Read More..

Rabu, 24 Agustus 2016

Hang on a Minute I Gotta Drain It

There comes a time when the pressure builds and you just gotta do something that you have put off too long....like putting drain plugs in a boat. The thought of drilling big holes in the transom scared the heck out of me, but I couldnt put it off any longer. After contemplating and procrastinating, I reviewed the cross-section of the transom to determine the lowest point in the transom I could drill a perpendicular hole and not breach the plywood bottom planking. I also looked at photos on this blog to see where I had located screws to hold on the bottom planking near the keel as I did not want to drill into one.

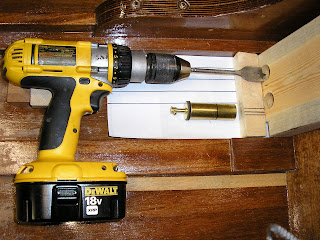

I then decided to bore a guide hole in a 2x6 and clamp it to the inside of the transom and another scrap board to the outside to prevent break-out when I drilled through. The first hole when well, and then I moved to the other side of the keel and located the hole and drilled another pilot hole in the 2x6 in the right location. The pictures show the second hole about to be drilled.








I tried to insert the drain sleeve into the hole from the outside, but it was too snug. I used a rotary drum sander to open it up slightly until the sleeve would ease in. Then I marked the sleeve with a Sharpie to leave it about 1/8" long. I removed the sleeve and a tubing cutter was used to cut it off. The sleeves were filed slightly around the outside to provide some fine scratches to ensure a good bite. Epoxy was mixed and coated the inside of the holes. Then some high density #404 filler added to thicken it up and smeared into the holes. The sleeves were inserted fully from the outside and I rigged up a bolt with large washers in each one to make sure they were held firmly in the hole while the epoxy cured.

The next day, I used a small ball peen hammer and slowly peened the brass sleeve over to provide a flange on the inside of the boat. The drain plugs fit in nicely and its all good.


Read More..

Selasa, 23 Agustus 2016

Doors Wires

I have now varnished and hung the internal doors.  In truth I did the hanging but had a proper carpenter come in and fit the furniture and locks and shoot the doors in.  And by hang I mean fitting the frames with the doors pre-hung. Remember I dont do wood. I also got the glass today which needed to be toughened in line with UK building safety code.  As it happens I think this is a good code so I have adopted it in the boat doors.|

So this is what the doors look like now.

Bedroom door from outside

The bathroom door is the same but difficult to photograph.  The glass is frosted in manufacture 100% privacy 95% light transmission.

And here are what I consider to be the absolutely fantastic door handles. Not only, IMO, are they beautifully designed they are beautifully engineered as well.


The final connections for the bow thruster have been made.  These are the charging lines which have to be fused both ends to prevent accidental overload of the charge lines if there isnt enough power in the bow thruster dedicated batteries.

150amp fuse engine end

150amp fuse BT end

I was fortunate that the local chandlers lent me their crimping tool so I could cut and alter the existing cables and put the terminals on properly as the cable had already been installed before I knew I had to fuse it in this way.  While I had the crimping too I also extended the start cables for the generator.  That done I connected the remote cable and from inside the boat I started the generator.  Woo Hoo, something else working :-)
Read More..

Senin, 22 Agustus 2016

Solar Powered

Now the roof has been painted I was able to fit the solar panels.  That was this weeks mid week visit to the boat.

Having made and fitted the mounting brackets it was time to wire up and screw them to the roof.  I had already laid in the wires in the ceiling void so this made the job a bite easier.  What made it difficult was the almost continuous rain over the last 2 days.  Anyway, after dodging what I could and getting the occasional dampening this is what it looks like.


Now the technical bit.


As the panels output at 30+ volts and this needs to get it into a 12v battery bank safely by reducing the voltage.

This needs another bit of kit, an MPPT controller (this site explains how they do what they do).

This is my MPPT charge controller.



The grey cable is to the remote meter which displays loads of information about whats happening. Of most interest is the live data on the input voltage, amperage and battery levels.

I have wired the negative via the shunt so this will record on the Victron battery monitor.

This is the instruction manual for the 10amp model but its exactly the same.

So today when the sun did shine well I was getting 35amps! Even when it was cloudy and pouring down I was still getting 5amps.

Conclusion.................... It works so hopefuly this will reduce or eliminate the need to run the generator.




Read More..

Sabtu, 20 Agustus 2016

A frame goes up and an auspicious arthropod goes down

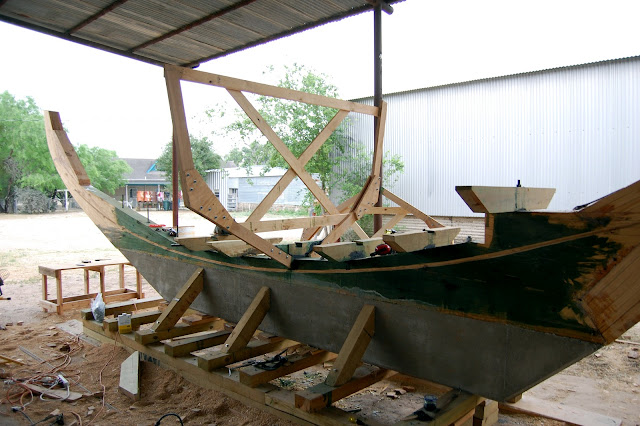

Frame 5 is the first to go up!
Floor 5 was situated about a quarter of an inch too far aft. One solution (and probably the proper solution) would be to replace the floor. I just shaved a quarter inch off of the timber real quick with a Skillsaw and chisel. Ramon was my hero in making it plumb with the plane when I got too frustrated to continue.

Treating bare wood with copper napthenate preservative.


And shes up! Three 3/8" bolts on each side. All wood-to-wood contact surfaces were soaked with copper and bedded in tar.


The "X" bracing and the cross beams at the sheer and just below the chine are temporary bracing.

Not the neatest job, but shes strong and deadly to fungi.

The first frame went up last night after a bit of a boat hiatus. Some coaxing with a Skillsaw and chisel got the frame to where it was supposed to hit the rabbet. Its nearly plumb, too. I apparently did a horrible job installing the floors, as three or four of them are not plumb nor flush with the station lines drawn on the keel. Ill be spending a lot of time over the next few days correcting my mistakes with a plane. This part of the boat building process has become tense as I anticipate bending a batten around the chine for the first time. I hope Luna will be beautiful.

Lucky for me, the universe sent me an auspicious sign this morning to calm my nerves.

I woke up at about 4 am this morning to a smelly, wet substance on my arm. I flung on the lights and, without my glasses, saw a blurry yellow puddle with a long, black swirly piece of business on my sheets where my arm had been. My mind immediately thought rats!, as I do have a history of sleeping in places were rats attack me in the night. Given this, and the series of rabies shots that followed, I am deathly afraid of rodents. I decided that, judging from the size of the mess on my bed, this rat had to be HUGE.  I frantically called Ramon to come over.

When I went back into my bedroom the turd was gone! I decided the rat must have come back and eaten it. I freaked. I had a monstrous, shit-eating rat in  my bedroom. I noticed a dark blurry mass moving slowly toward the corner of my bed. Rather than get closer, I decided to get out of there and start doing internet searches for, "feces consumption in rats," worried that there was a correlation between this behavior and rabies. Very productive.

When Ramon arrived, bleary-eyed and sweet as could be, we searched my bedroom with no luck. Ramon suggested the turd was in fact a culebrilla and that there was no rat. I was somewhat comforted by this possibility.

Culebrilla-- apparently common in the Valley, though sightings are rare.
But still-- the smelly yellow stuff made no sense. I resorted to Googling things like, "fat worm smelly yellow liquid" and finally came up with this:
A giant millipede! When stressed or injured, they secrete a pungent yellow substance that contains hydrogen cyanide. We never did find it, and these things live for 5-10 years. There was a lot of yellow stuff though, so one can hope it was fatally wounded. Ah well. Despite the long-lived monster spewing cyanide in my bedroom, I did sleep a little sounder knowing it wasnt a rat.

The the silver lining in this early-morning fiasco? Apparently millipedes are good luck. Perhaps the chine will be fair after all.
Read More..

Jumat, 19 Agustus 2016

Lets Build A Rudder

There is a sister boat to mine.  The owner reported that the rudder design he felt was poor and needed improvoing.  The rudder that comes with the boat is a plain flat one.

A bit of reserach came up with several designs that are better and give more turn for your buck.  In the end I decided to go for a type know as a Schilling, or Fishtail rudder.  It has several other names but these are the most common.  Having read a great deal about them and the maths involed I came up with my design.

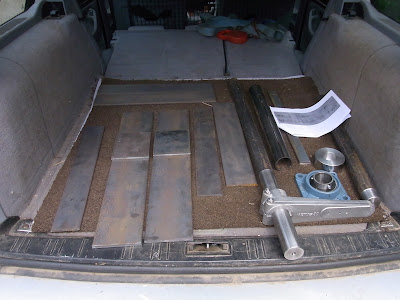

Here is the whole rudder in parts form.


Once all marked up I tack welded the parts together so I could drill them all together.

The small parts are the attachment parts

Then the drilling.  The large holes are to take the rudder stock pole which is 50mm.

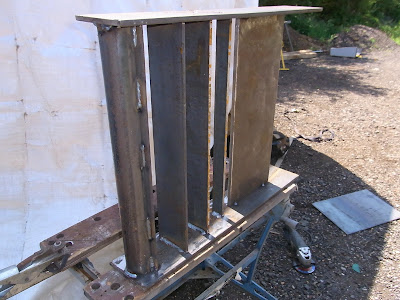

Once drilled I tack welded the parts together.  When making things it like this its best to tack it all just in case it need altering.


Once its all together its fully welded.


Once the supporting ribs are in place the outer skin needs attaching.  This a 4mm sheet of steel and its best forced over the ribs cold to prevent any distortion that heat might cause.  The flow over the rudder would be affected by this.  This is a slow and gentle process using g-clamps to ease it into place.

1st side done

The inside

 This is the finished rudder

The two smaller parts earlier will be used later on the rudder pivots and will bolt on tho the top and bottom of this part.  This is to enable the rudder to be removed if the the drive shaft needs drawing out.  More on that soon.
Also on the go at them moment is the construction of the pram hood.  Again more on this as there is something to show.


Read More..

Kamis, 18 Agustus 2016

Across Atlantic Ice or people came to America by boat

In their book Across Atlantic Ice, the authors posit the theory that people of the Clovis culture came to America along the edge of the ice sheet that went from the northern coast of Spain to the northern Atlantic coast of America.  The idea is that they traveled by boat, skinboat supposedly along the ice edge and ate sea mammals that they killed along the way.
You can read the book if you are interested in the details.  The main reason the authors posited their theory of migration by sea was that the mainstream theory which had people walking to America lacked any evidence to back it up.  Had the Clovis people walked to America, there should be some trace of their presence in the form of spear points found in Alaska or Siberia, but there wasnt.  Instead, the authors claim that the Clovis trail of artifacts leads back to the coast of Spain.
Critics of this theory say that there is no evidence of the boats that the Clovis people supposedly used to make their crossing.  Of course there wouldnt be after all this time because the organic materials that made up the boats would long have disappeared.
But the main thing that interests me about this dispute is the inability of modern people to imagine the ability of earlier humans to build boats.  It is also something that the authors accuse their critics of. In any case, there are other migrations that were made thousands of years ago, like the migration to Australia that left no evidence of boats although they could not have been made in any other way given that even at lowest sea levels there was water between their starting point and their destination.
Michael Collins, the author of the foreword to the book calls this inability to imagine that ancient people were as imaginative as contemporary humans paleoracism. I dont know that I would call that shortage of imagination racism, but it springs out of the same place that racism does, out of the inability to give others full credit for human abilities.
Read More..
